500 kw
Generator

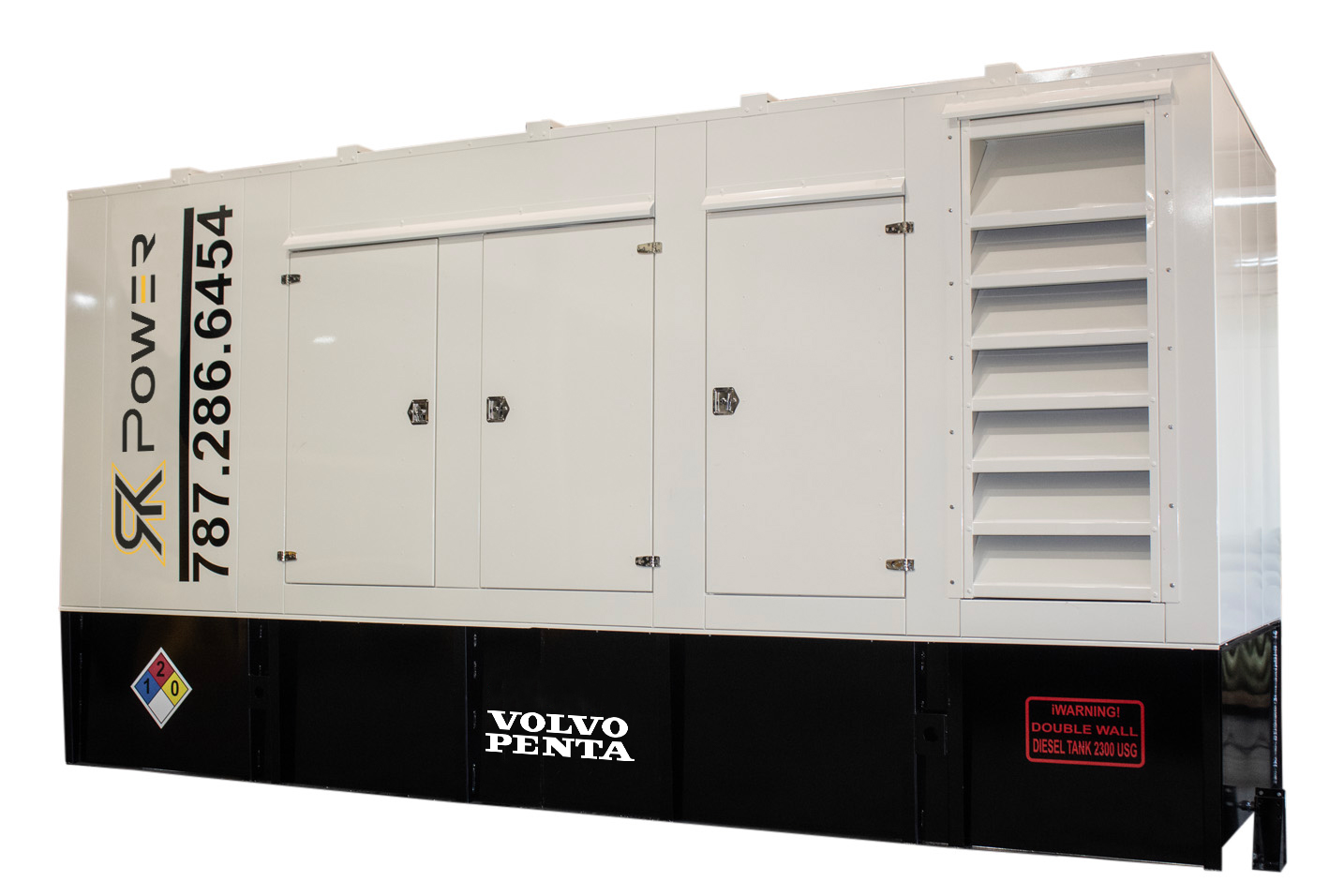

500kW generator powered by a Volvo diesel engine and Stamford alternator for industrial application
Generator Description
General Information:
SKU: 042329
Volvo Penta TAD1641GE-B Engine
16.12 liters, 6 inline cylinders
US/EPA Tier 3 and EU STAGE 3A certified
Power: Standy by 550 kWm / Prime 489 kWm
Alternator 24V/80A
Starter: 24V/7kW
Sensor for oil pressure and temperature, coolant temperature, fuel pressure, and speed sensor
The Engine Management System 2 (EMS 2), an electronically controlled processing unit that optimizes engine performance.
Control panel
Control Module: DEEP SEA DSE7320.
Continuous voltage range: 8v a 35V.
LCD text display in up to 7 languages
Configurable Alarms
Automatic Shutdown: Under-voltage, overload, low frequency, low coolant level, overcurrent, low oil pressure
Breaker box
Brand: SIEMENS
Model: 3WL5116-3EB32-1AA4
Number of poles: 3
Molded case
Maximum short-circuit breaking capacity (Icu):415Vac 65kA.
Rated current (In): Main circuit 1600A
Certification: UL
Mechanical terminals
Tank
Diesel sub-base tank
2100 or 3000 US gallons
Double wall
Material: Mild steel
Six lifting points
Voltage
1PH - 120/240v
3PH - 120/208v
3PHM - 120/240v
3PHH - 277/480v
Cabin
Sound attenuation material: Up to 2" of closed-cell foam acoustic insulation
Vertical discharge of hot air
Access doors: 05
Hinges and door locks: stainless steel material
Warranty
This generator has a warranty of:
02 YEARS or 2000 hours
