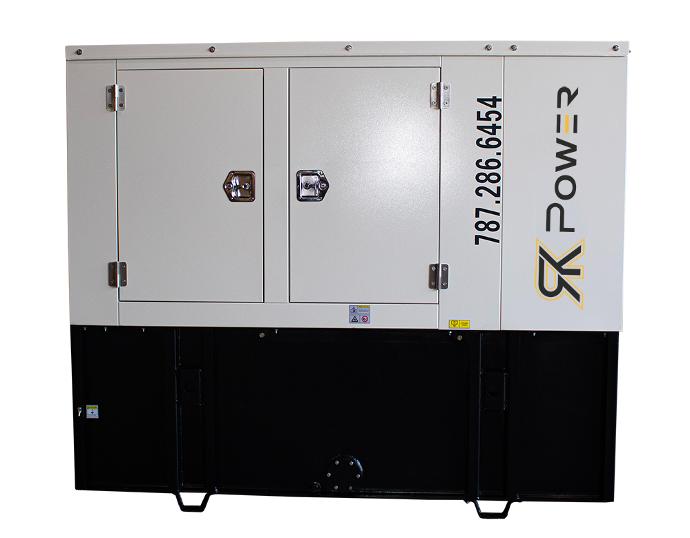

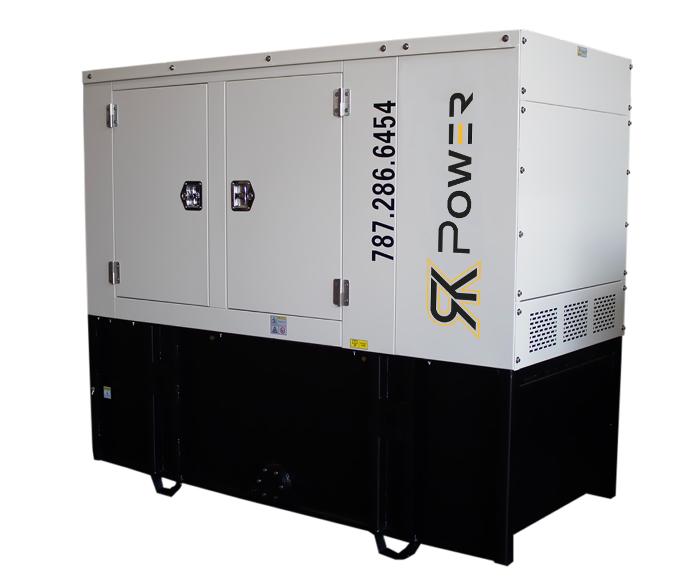

40 kW Generator
40kW generator powered by a Perkins diesel engine and Stamford alternator for commercial application
Generator Description
General Information:
SKU: 000005
Kubota V3600-TE3BG Engine:
4.76 liters, 4 inline cylinders
Certified for US/EPA Tier 4 Interim
Power: Standby 43.1 kWm / Prime 39.2 kWm
Alternator: 12V/45A
Starter: 12V/3kW
Sensor for oil pressure and temperature, coolant temperature, coolant level sensor

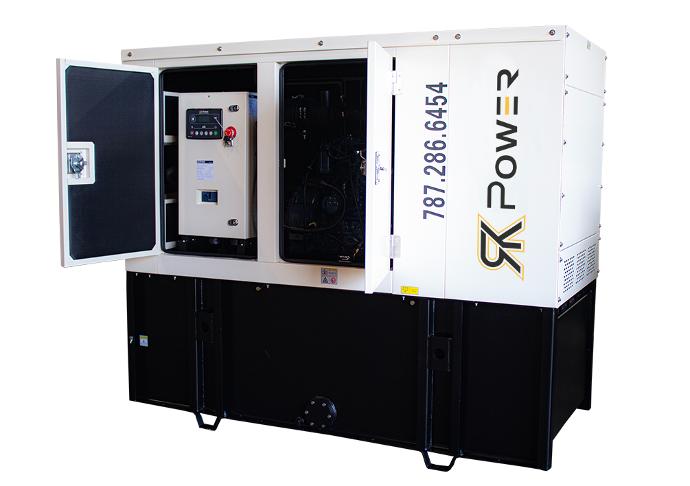

Control panel
Control Module: DEEP SEA DSE6320 MKII.
Continuous voltage range: 8V to 35V
LCD text display in up to 7 languages
Configurable Alarms
Automatic Shutdown: Under-voltage, overload, low frequency, low coolant level, overcurrent, low oil pressure
Breaker Box
Brand: ABB
Model: A2N 250 TMF 125-1250
Number of poles: 2
Molded case
Capacidad máxima de corte de corriente de cortocircuito (Icu):240Vac 25kA
Rated current (In): Main circuit 125A
Certification: UL
Mechanical lugs
Tank
Diesel sub-base tank
200 US gallons
Double wall
Material: Mild steel
Four lifting points
Voltage
1PH - 120/240v
3PH - 120/208v
3PHM - 120/240v
3PHH - 277/480v
Cabin
Sound attenuation material: Up to 2" of closed-cell foam acoustic insulation
Vertical discharge of hot air
Access doors: 04
Hinges and door locks: stainless steel material
Warranty
This generator has a warranty of:
02 YEARS or 2000 hours
Request your quote
Complete the request and a authorized representative will contact you as soon as possible
