600 kw
Generator

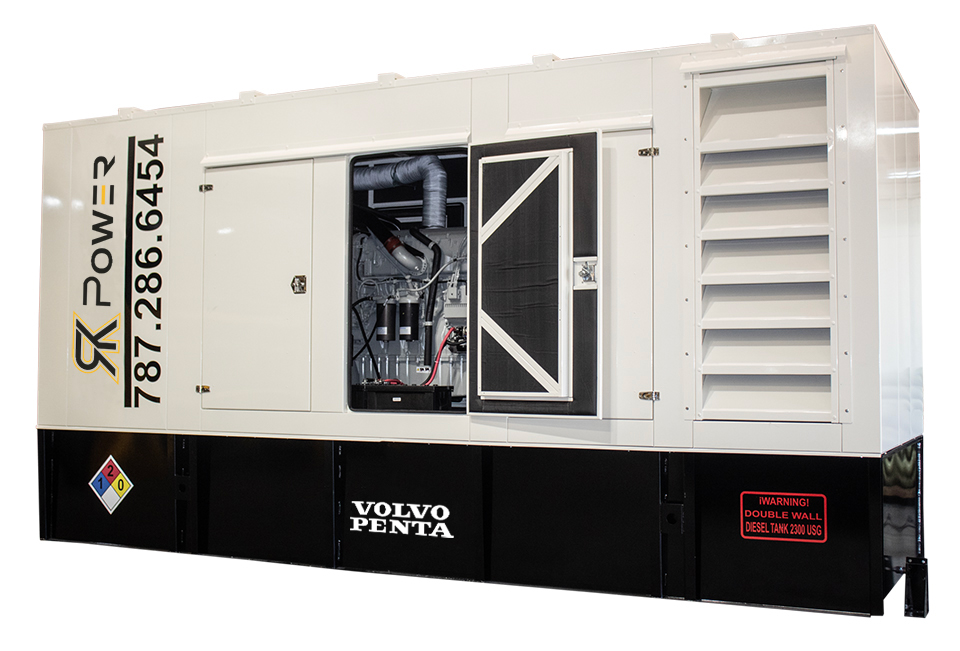

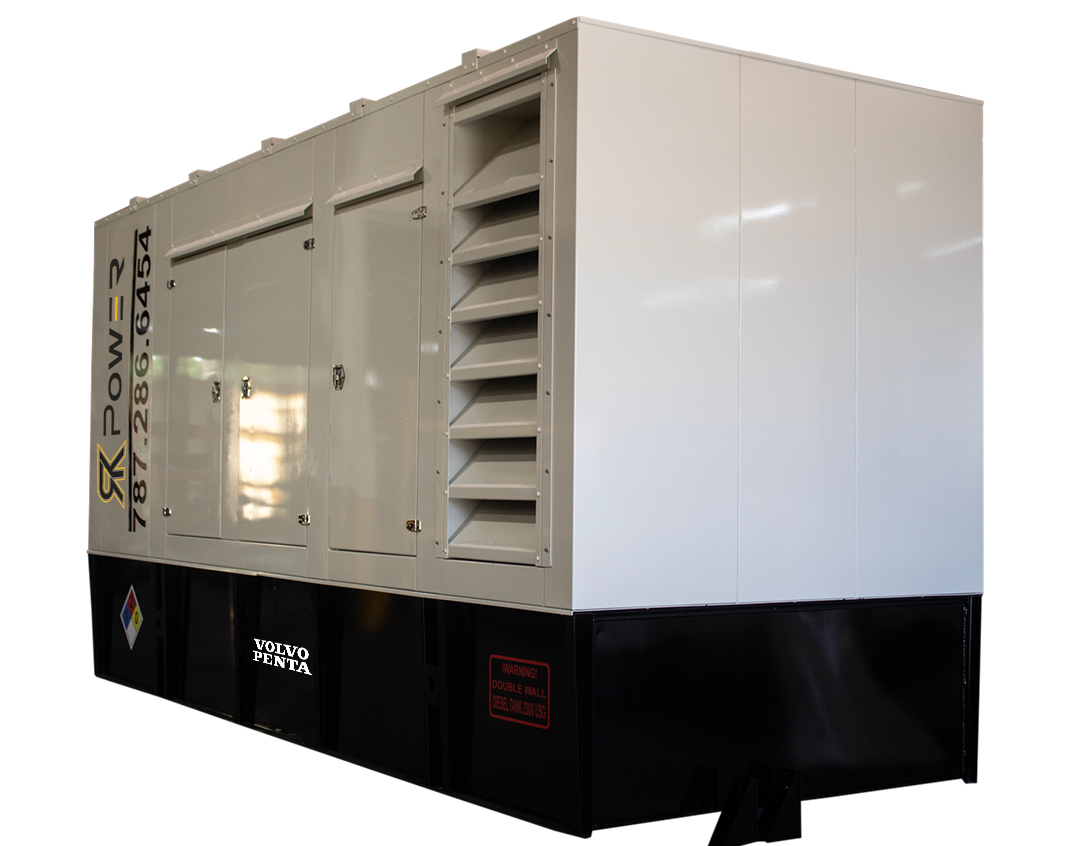

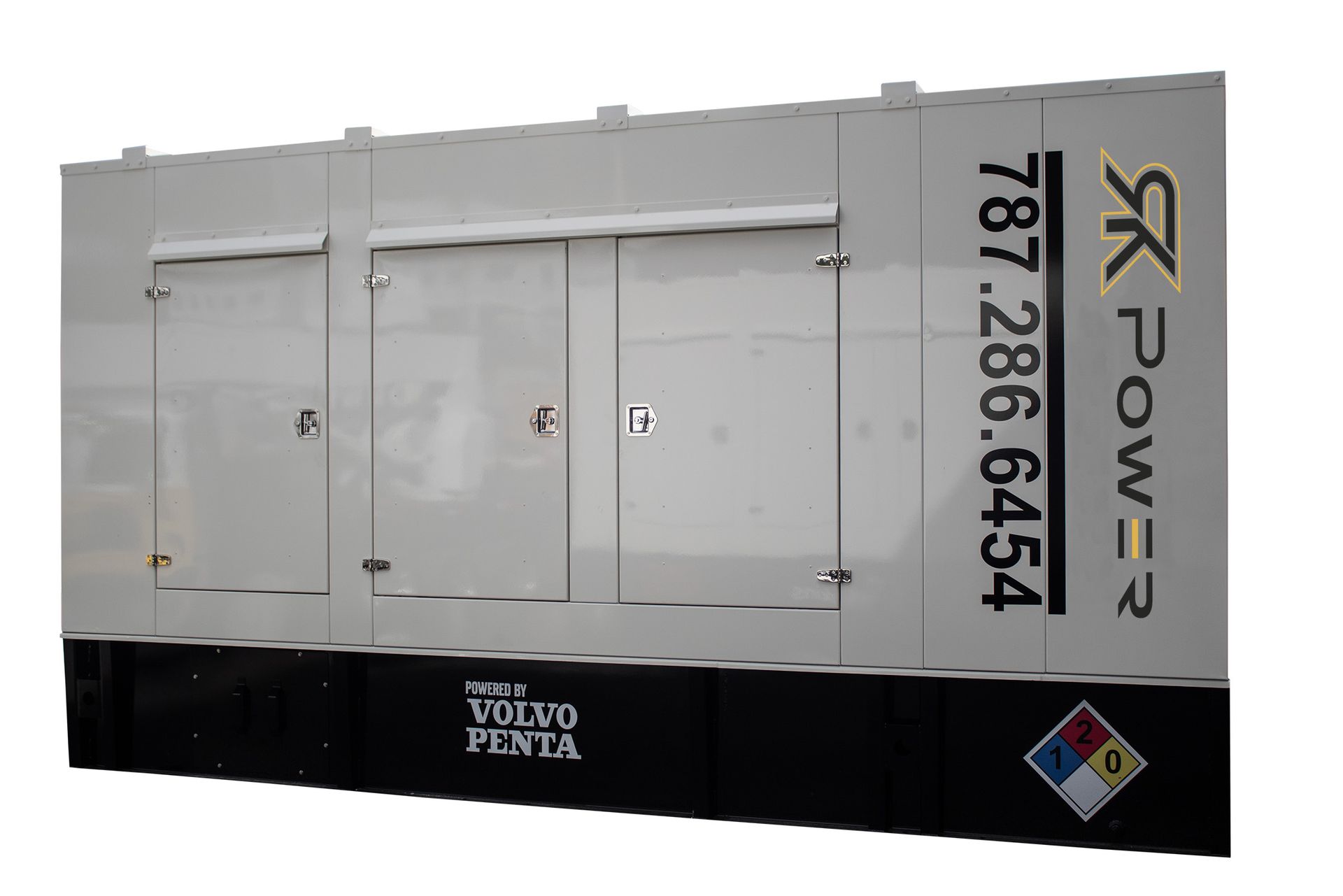

600kW generator powered by a Volvo diesel engine and Stamford alternator for industrial application
Generator Description
General Information:
SKU: 042330
Volvo Penta TAD551GE Engine
18.3 liters, 6 inline cylinders
EU STAGE 2 certified
Power: Standy by 640 kWm / Prime 582 kWm
Alternator 24V/70A
Starter: 24V/9kW
Sensor for oil pressure and temperature, coolant temperature, fuel pressure, and speed sensor
The Engine Management System 2 (EMS 2.4), an electronically controlled processing unit that optimizes engine performance.
Control panel
Control Modulel: DEEP SEA DSE7320.
Continuous voltage range: 8v a 35V.
LCD text display in up to 7 languages
Configurable Alarms
Automatic Shutdown: Under-voltage, overload, low frequency, low coolant level, overcurrent, low oil pressure
Breaker box
Brand: ABB
Model: EMAX E2.2N-A 2000
Number of poles: 3
Molded case
Maximum short-circuit breaking capacity (Icu): 254Vac 50kA.
Rated current (In): Main circuit 2000A
Certification: UL
Mechanical terminals
Tank
Diesel sub-base tank
2100 or 3000 US gallons
Double wall
Material: Mild steel
Six lifting points
Voltage
1PH - 120/240v
3PH - 120/208v
3PHM - 120/240v
3PHH - 277/480v
Cabin
Sound attenuation material: Up to 2" of closed-cell foam acoustic insulation
Vertical discharge of hot air
Access doors: 04
Hinges and door locks: stainless steel material
Warranty
This generator has a warranty of:
02 YEARS or 2000 hours
