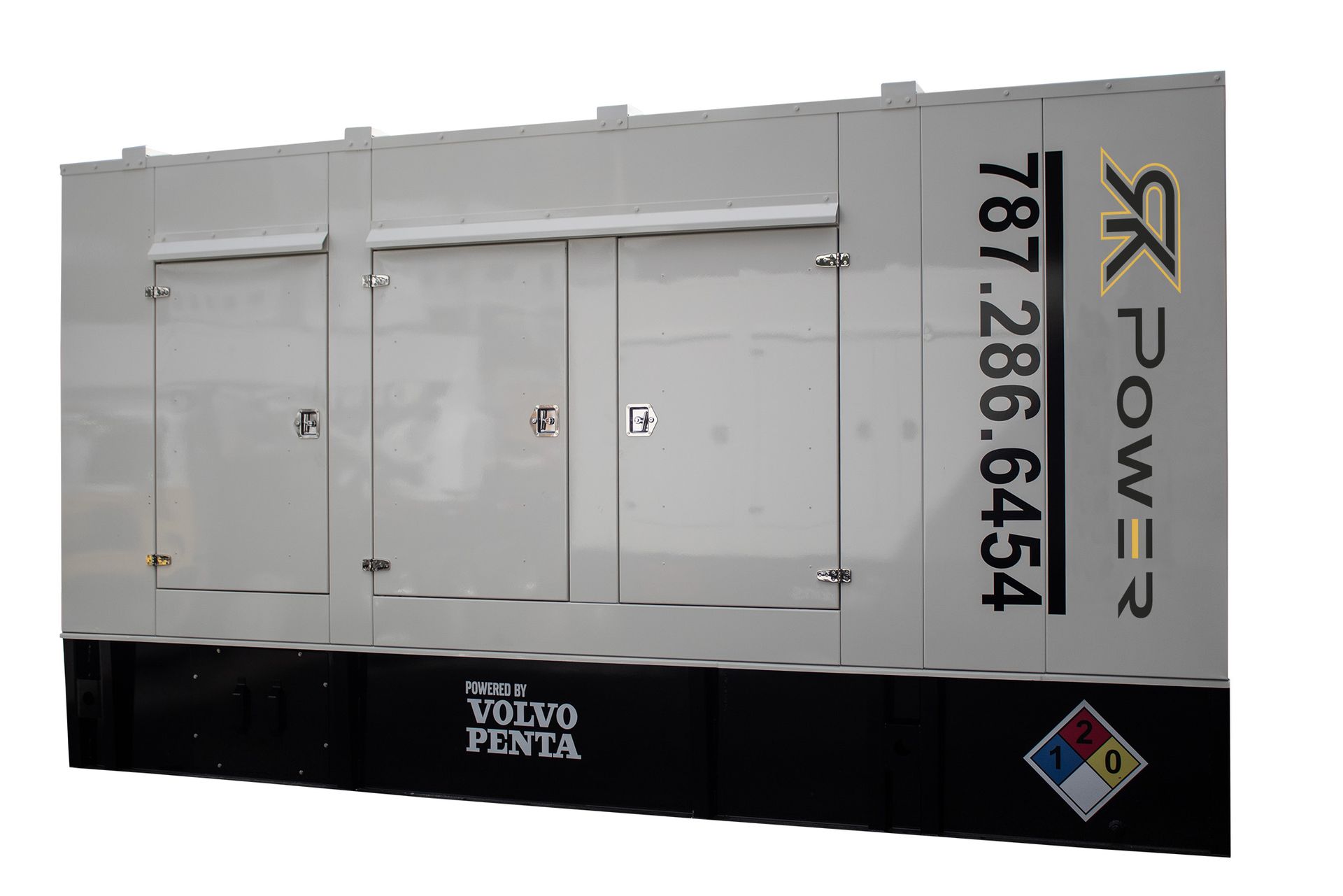

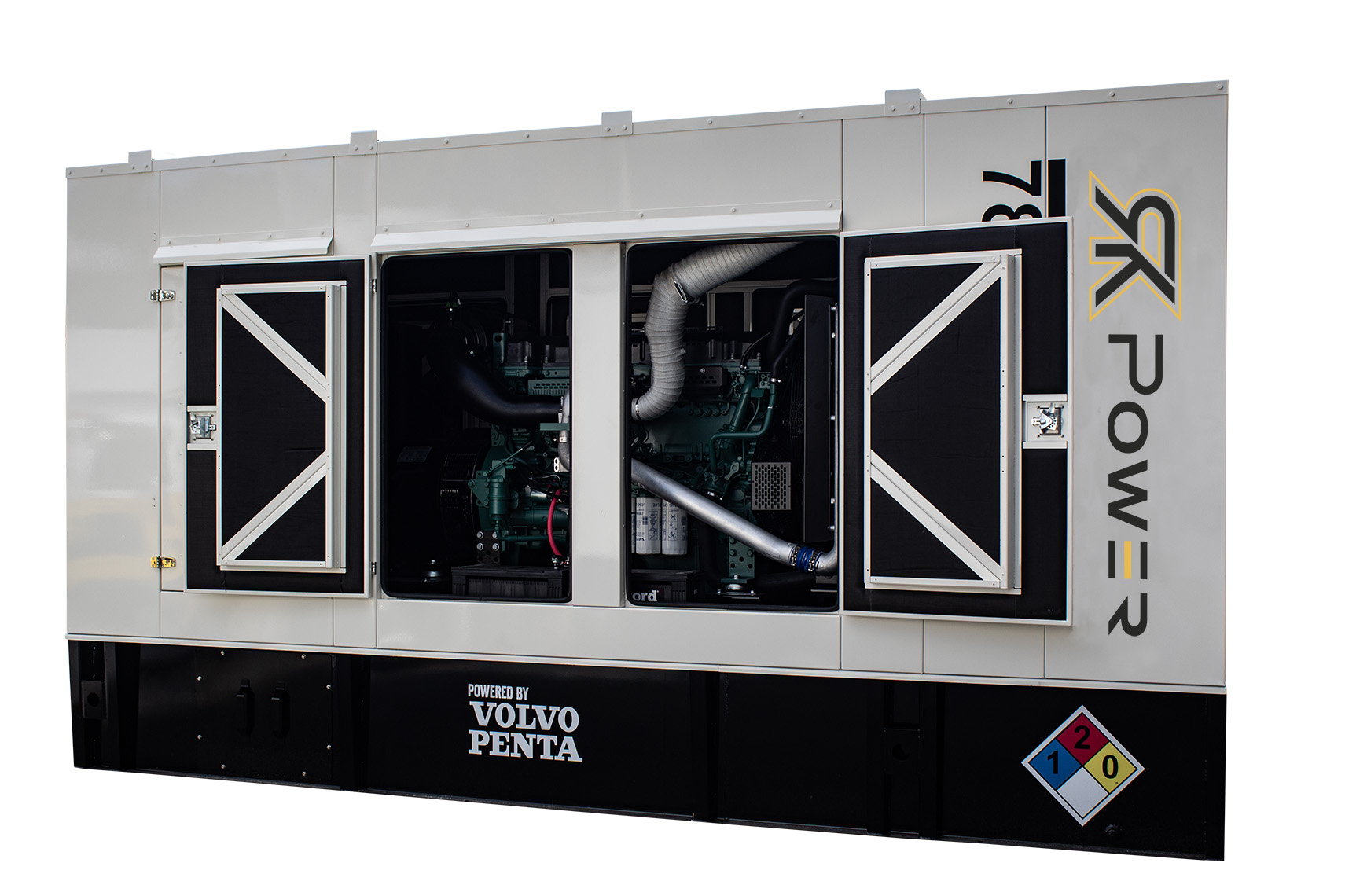

300 kW Generator
300kW generator powered by a Volvo or Perkins diesel engine and Stamford alternator for industrial application
Generator Description
General Information:
SKU: 042326
Volvo Penta TAD551GE Engine
12.78 liters, 6 inline cylinders
US/EPA Tier 3 and EU STAGE 3A certified
Power : Standy by 272 kWm / Prime 247 kWm
Alternator 24V/80A
Starter: 24V/5kW
Sensor for oil pressure and temperature, coolant temperature, fuel pressure, and speed sensor
The Engine Management System 2 (EMS 2), an electronically controlled processing unit that optimizes engine performance.
Control panel
Control Module: DEEP SEA DSE7320.
Continuous voltage range: 8v a 35V.
LCD text display in up to 7 languages
Configurable Alarms
Automatic Shutdown: Under-voltage, overload, low frequency, low coolant level, overcurrent, low oil pressure
Breaker box
Brand: SIEMENS
Model: 3VA6610-6HL32-0AA0
Number of poles: 3
Molded case
Maximum short-circuit breaking capacity (Icu): 240Vac 110kA.
Rated current (In): Main circuit 1000A
Certification: UL
Mechanical terminals
Tank
Diesel sub-base tank
1050 or 1550 US gallons
Double wall
Material: Mild steel
Six lifting points
Cabin
Sound attenuation material: Up to 2" of closed-cell foam acoustic insulation
Vertical discharge of hot air
Access doors: 05
Hinges and door locks: stainless steel material
Warranty
This generator has a warranty of:
02 YEARS or 2000 hours
Request your quote
Complete the request and a authorized representative will contact you as soon as possible
