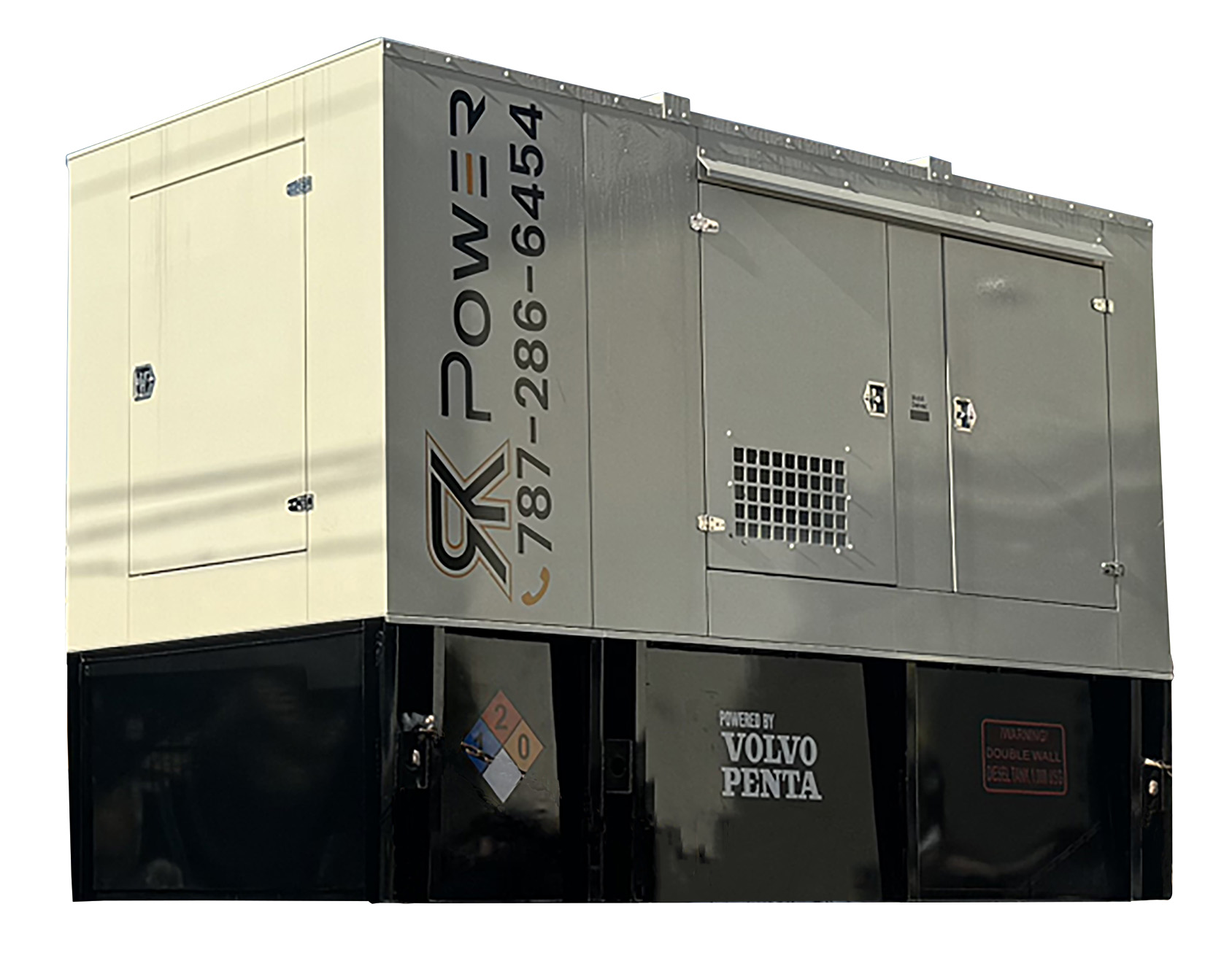

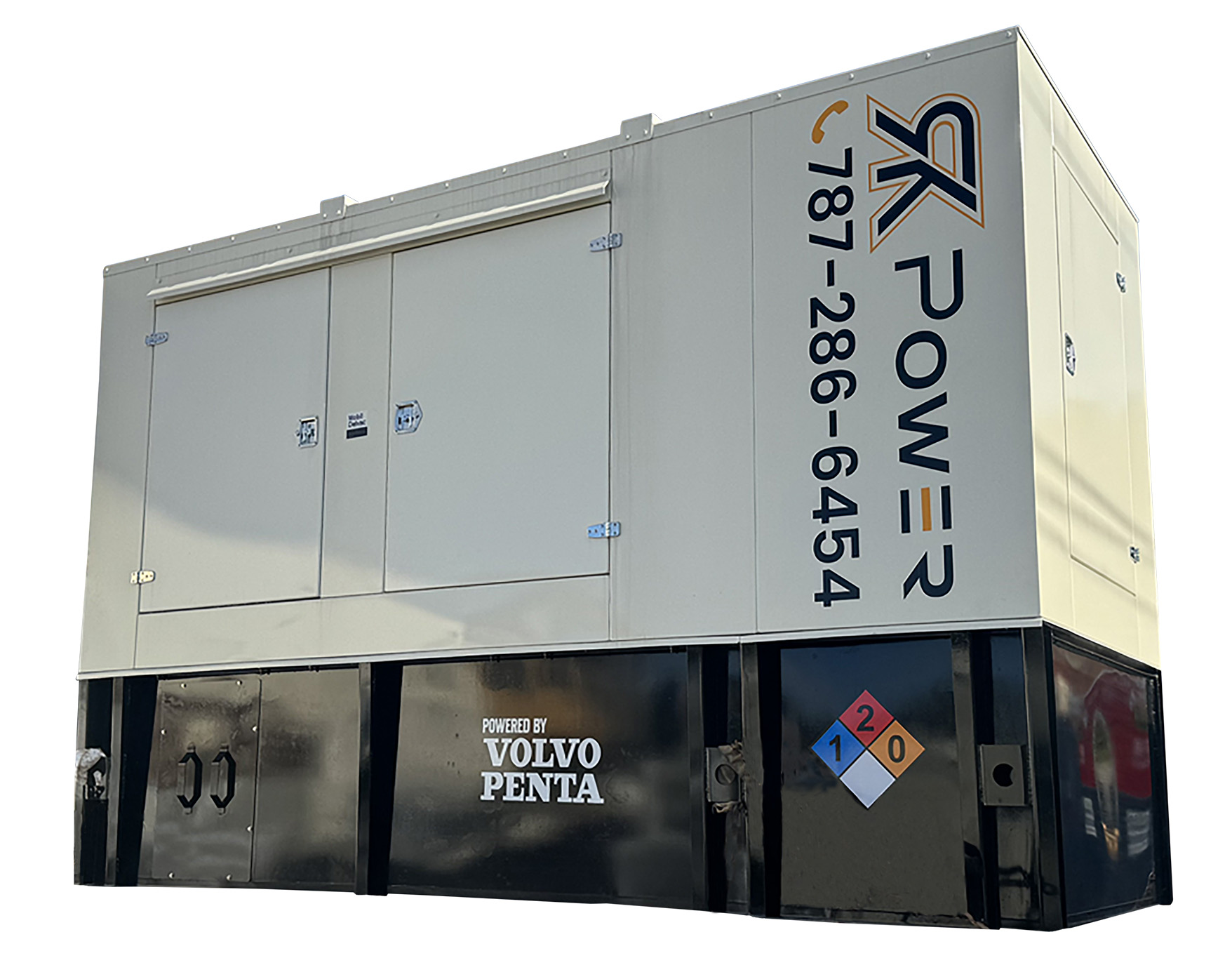

250 kW Generator

250kW generator powered by a Volvo diesel engine and Stamford alternator for industrial application​

Generator Description


General Information:​ ​
SKU: 012056
Volvo Penta  TAD852GE Engine

4.76 liters, 4 inline cylinders

 US/EPA Tier 3 and EU STAGE 3A Certified

Power : Standy by  272 kWm / Prime 247 kWm

Alternator 24V/110A

Starter: 24V/5kW

Sensor for oil pressure and temperature, coolant temperature, coolant level sensor

The Engine Management System 2 (EMS 2), an electronically controlled processing unit that optimizes engine performance. ​

Control panel

Control Module: DEEP SEA DSE7320 MKII.

Continuous voltage range: 8V to 35V

LCD text display in up to 7 languages

Configurable Alarms

Automatic Shutdown: Under-voltage, overload, low frequency, low coolant level, overcurrent, low oil pressure

Breaker Box:

Brand: ABB

Model: XT7S 1000

Number of poles: 3

Molded case

Maximum short-circuit breaking capacity (Icu):240Vac 65kA.

Rated current (In): Main circuit 1000A

Certification: UL

Mechanical terminals

Tank

Diesel sub-base tank

1050 or 1550 US gallons

Double wall

Material: Mild steel

Six lifting points

Voltage

1PH - 120/240v

3PH - 120/208v

3PHM - 120/240v

3PHH - 277/480v

Cabin

Sound attenuation material: Up to 2" of closed-cell foam acoustic insulation

Vertical discharge of hot air

Access doors: 07

Hinges and door locks: stainless steel material

Warranty

This generator has a warranty of:
02 YEARS or 2000 hours​​​
