230 kw
Generator
230kW generator powered by a Volvo diesel engine and Stamford alternator for commercial application
Generator Description
General Information:
SKU: 042324
Volvo Penta TAD551GE Engine
- 4.76 liters, 4 inline cylinders
- US/EPA Tier 3 and EU STAGE 3A certified
- Power : Standy by 248 kWm / Prime 225 kWm
- Alternator: 24V/110A
- Starter: 24V/5kW
- Sensor for oil pressure and temperature, coolant temperature, fuel pressure, and speed sensor
- The Engine Management System 2 (EMS 2), an electronically controlled processing unit that optimizes engine performance.
Control panel
- Control Module: DEEP SEA DSE7320.
- Continuous voltage range: 8v a 35V.
- LCD text display in up to 7 languages
- Configurable Alarms
- Automatic Shutdown: Under-voltage, overload, low frequency, low coolant level, overcurrent, low oil pressure

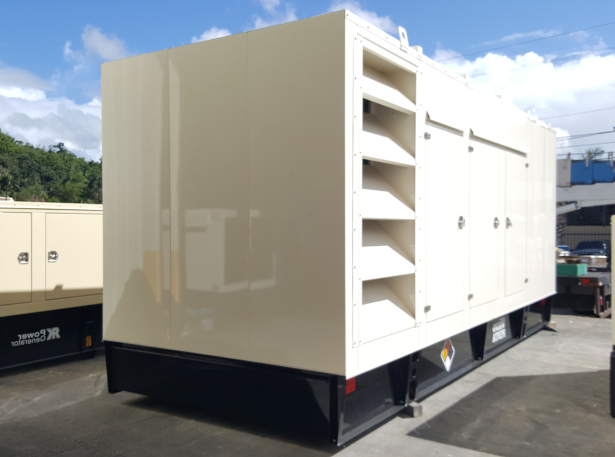

Cabin
- Sound attenuation material: Up to 2" of closed-cell foam acoustic insulation
- Vertical discharge of hot air
- Access doors: 05
- Hinges and door locks: stainless steel material
Voltage
- 1PH - 120/240v
- 3PH - 120/208v
- 3PHM - 120/240v
- 3PHH - 277/480v
Breaker box
Alternator
Warranty
This generator has a warranty of:
02 YEARS or 2000 hours
Do you want to know in detail?
This is the technical data sheet
