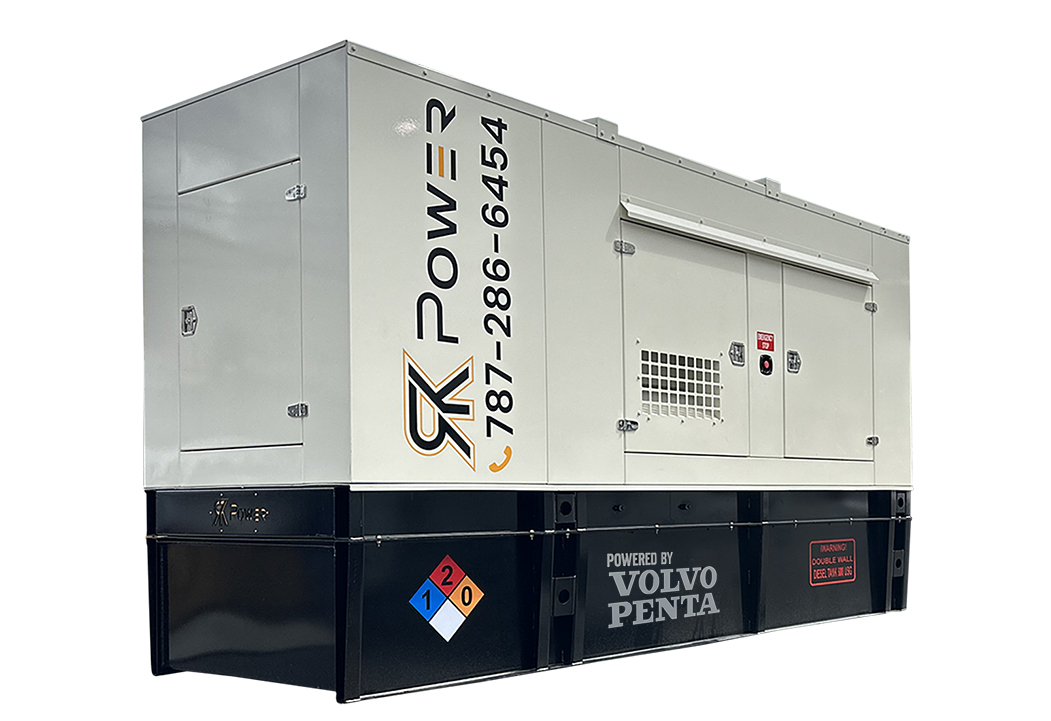

200 kW Generator
200kW generator powered by a Volvo diesel engine and Stamford alternator for commercial application
Generator Description
General Information:
SKU: 042323
Volvo Penta TAD551GE Engine
4.76 liters, 4 inline cylinders
Certified for US/EPA Tier 3 y EU STAGE 3A
Power : Standy by 248 kWm / Prime 225 kWm
Alternator 24V/110A
Starter: 24V/5.6kW
Sensor for oil pressure and temperature, coolant temperature, fuel pressure, and speed sensor
The Engine Management System 2 (EMS 2), an electronically controlled processing unit that optimizes engine performance.
Control panel
Control Module: DEEP SEA DSE7320.
Continuous voltage range: 8v a 35V.
LCD text display in up to 7 languages
Configurable Alarms
Automatic Shutdown: Under-voltage, overload, low frequency, low coolant level, overcurrent, low oil pressure
Breaker box
Una breve descripción de esta gran característica.
Brand: ABB
Model: XT6N 800
Number of poles: 3
Molded case circuit
Maximum short-circuit breaking capacity (Icu):240Vac 65KA.
Rated current (In): Main circuit 600A
Certification: UL
Mechanical terminals
Tank
Diesel sub-base tank
850 or 1300 US gallons
Double wall
Material: Mild steel
Six lifting points
Voltage
1PH - 120/240v
3PH - 120/208v
3PHM - 120/240v
3PHH - 277/480v
Cabin
Sound attenuation material: Up to 2" of closed-cell foam acoustic insulation
Vertical discharge of hot air
Access doors: 05
Hinges and door locks: stainless steel material
Warranty
This generator has a warranty of:
02 YEARS or 2000 hours
