20 kW Generator
20kW generator powered by a Perkins diesel engine and Stamford alternator for residential use
Generator Description
General Information:
SKU: 000003
Perkins 404D-22G Engine
1.496 liters, 3 inline cylinders
US/EPA Tier 3 and EU STAGE 3A certified
Power: Standby 15.9 kWm / Prime 14.4 kWm
Alternator: 12V/65A
Starter: 12v/2kW
Sensor for oil pressure and temperature, coolant temperature, coolant level sensor.
Download Technical Data Sheet

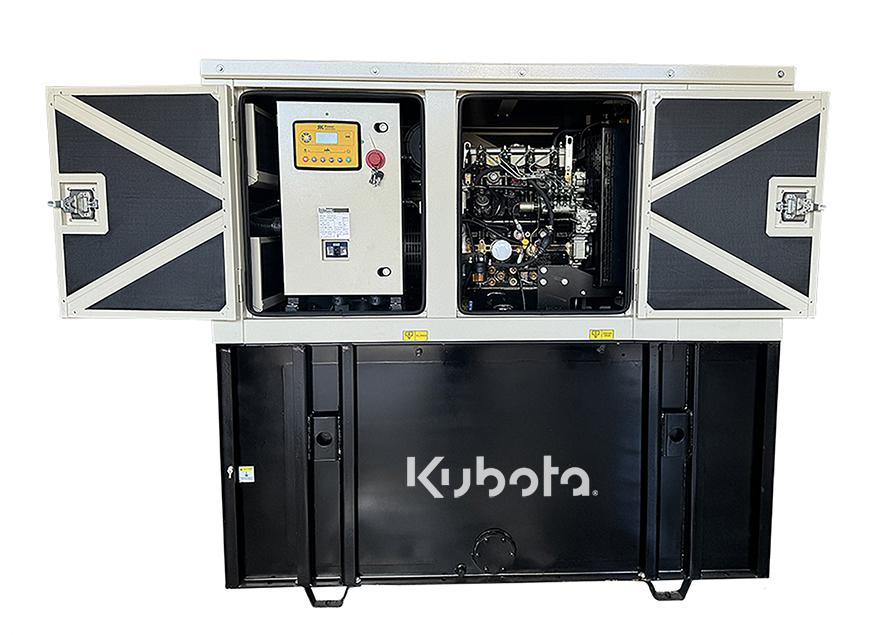

Control panel
Control Module: DEEP SEA DSE6320 MKII.
Continuous voltage range: 8V to 35V
LCD text display in up to 7 languages
Configurable Alarms
Automatic Shutdown: Under-voltage, overload, low frequency, low coolant level, overcurrent, low oil pressure
Breaker box
Brand: SIEMENS
Model: 3VA5110-4ED21-0AA0
Number of poles: 2
Molded case
Maximum short-circuit breaking capacity (Icu): 240Vac 25kA
Rated current (In): Main circuit 100A
Certification: UL
Mechanical lugs
Tank
Diesel sub-base tank
200 US gallons
Double wall
Material: Mild steel
Four lifting points
Voltage
1PH - 120/240v
3PH - 120/208v
3PHM - 120/240v
3PHH - 277/480v
Cabin
Sound attenuation material: Up to 2" of closed-cell foam acoustic insulation
Vertical discharge of hot air
Access doors: 04
Hinges and door locks: stainless steel material
Warranty
This generator has a warranty of:
02 YEARS or 2000 hours
