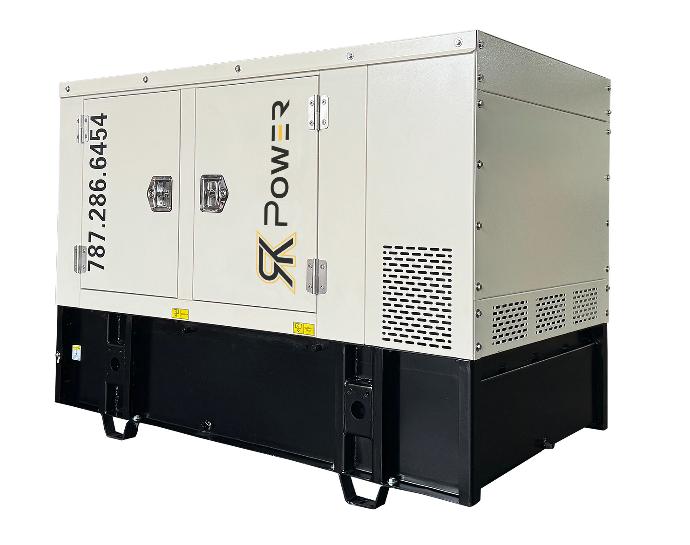

10 Kw Generator
10KW Generator powered by diesel Perkins Engine and Stamford Alternator for residencial aplication
Generator Description
General Information:
SKU: 000002
Perkins 403D-15G Engine:
1.496 liters, 3 inline cylinders.
US/EPA Tier 4 and EU STAGE 3A certified
Performance: Standby 15.9 kWm / Prime 14.4 kWm
Alternator 12V/65A
Starter: 12V/2KW
Sensor de presión de aceite, temperatura del refrigerante y sensor de nivel de refrigerante.

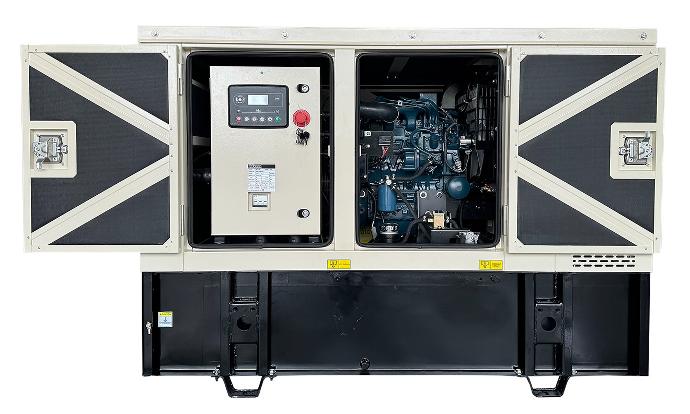

Control panel
Control Module: DEEP SEA DSE6320 MKII.
Continuous voltage range: 8V to 35V.
LCD text display in up to 7 languages.
Configurable Alarms.
Automatic Shutdown: Under-voltage, overload, low frequency, low coolant level, overcurrent, low oil pressure.
Breaker box
Brand: ABB
Model: A1N 100 TMF 50-500
Number of poles: 2.
Molded case
Maximum short-circuit breaking capacity (Icu): 240Vac 25kA.
Rated current (In): Main circuit 70A
Certification: UL
Mechanical lugs
Tank
Diesel sub-base tank
120 US gallons.
Double wall.
Material: Mild steel.
Four lifting points.
Voltage
1PH - 120/240v
3PH - 120/208v
3PHM - 120/240v
3PHH - 277/480v
Cabina
Sound attenuation material: Up to 2" of closed-cell foam acoustic insulation.
Vertical discharge of hot air.
Access doors: 04
Hinges and door locks: stainless steel material
Warranty
This generator has a warranty of:
02 YEARS or 2000 hours
