100 kW Generator

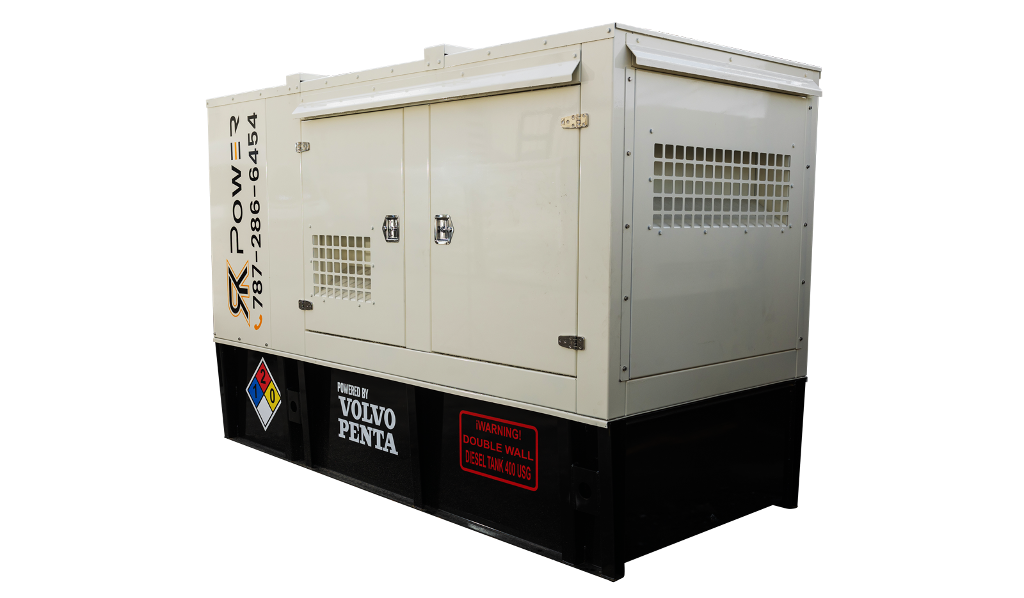

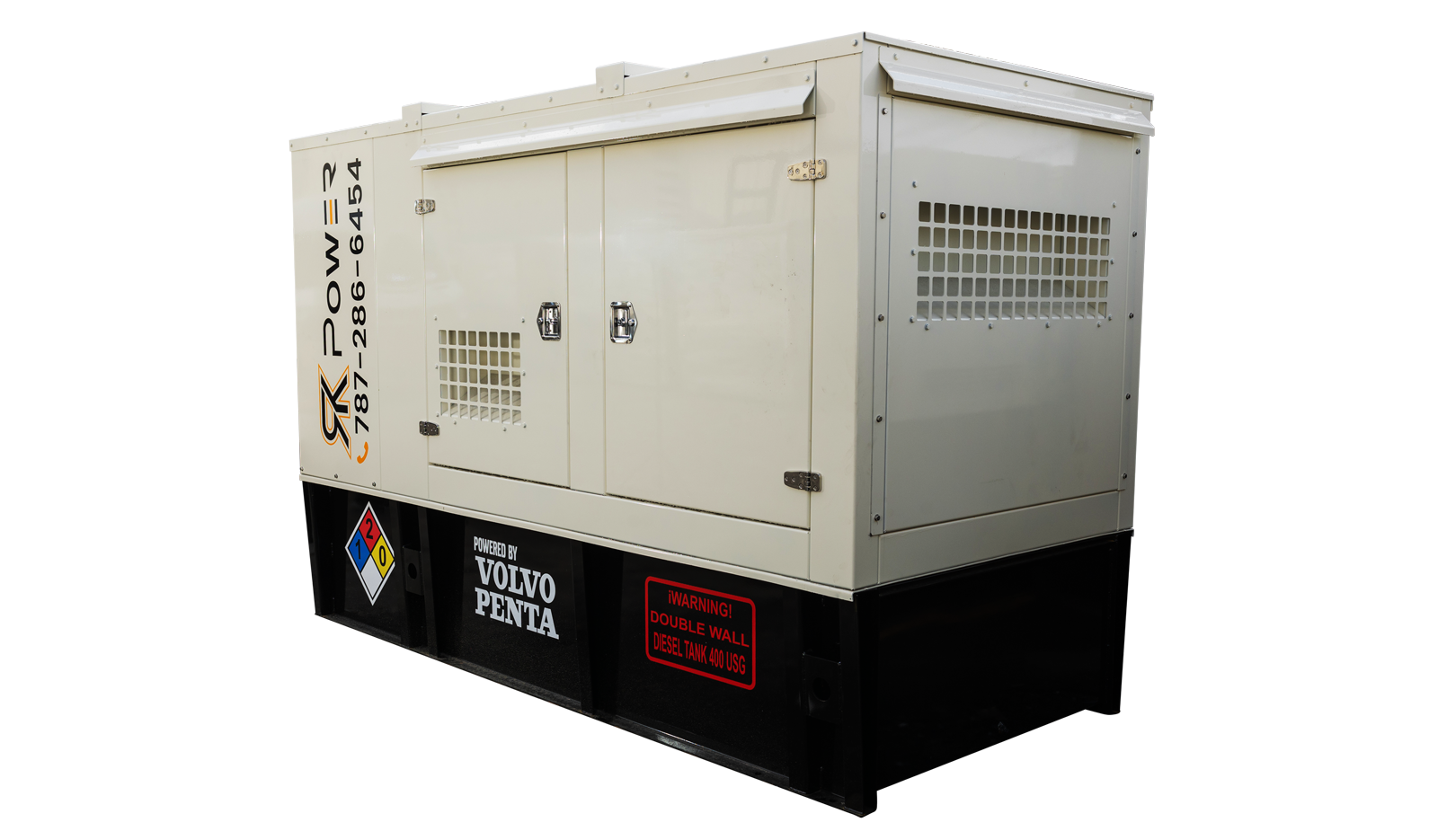

100kW generator powered by a Volvo diesel engine and Stamford alternator for commercial application

Generator Description


General Information:​ ​
SKU: 042319
Volvo Penta TAD551GE Engine

4.76 liters, 4 inline cylinders

Certified for US/EPA Tier 3 y EU STAGE 3A

Power: Standy by  114 kWm / Prime 100 kWm

Alternator 24V/55A

Starter: 24V/5kW

Sensor for oil pressure and temperature, coolant temperature, fuel pressure, and speed sensor

The Engine Management System 2 (EMS 2), an electronically controlled processing unit that optimizes engine performance. ​




General Information:​ ​
SKU: 042318
Motor Volvo Penta TAD551GE
  • 4.76 litros, 4 cilindros en línea.
  • Certificado US/EPA Tier 3 y EU STAGE 3A
  • Potencia: Standy by 114 kWm / Prime 100 kWm
  • Alternador 24V/55A
  • Arrancador: 24V/5kW
  • Sensor para la presión y la temperatura del aceite, la presión de refuerzo, la temperatura de refuerzo, la temperatura del refrigerante, la presión de combustible y el sensor de velocidad
  • El sistema de gestión del motor 2 (EMS 2), un procesamiento controlado electrónicamente que optimiza el rendimiento del motor.
Control panel

Control Module: DEEP SEA DSE7320 MKII.

Continuous voltage range: 8V to 35V

LCD text display in up to 7 languages

Configurable Alarms

Automatic Shutdown: Under-voltage, overload, low frequency, low coolant level, overcurrent, low oil pressure

Breaker Box

Breaker Box:

Brand: ABB

Model: TMAX XT5N 600

Number of poles: 3

Molded case ​

Maximum short-circuit breaking capacity (Icu):240Vac 65KA.

Rated current (In): Main circuit 600A

Certification: UL

Mechanical lugs



Tank

Diesel sub-base tank

400 or 600 US gallons

Double wall

Material: Mild steel

Four lifting points

Voltage

1PH - 120/240v

3PH - 120/208v

3PHM - 120/240v

3PHH - 277/480v

Cabin

Sound attenuation material: Up to 2" of closed-cell foam acoustic insulation

Vertical discharge of hot air

Access doors: 05

Hinges and door locks: stainless steel material



Cabina
  • Sound attenuation material: Up to 2" of closed-cell foam acoustic insulation
  • Vertical discharge of hot air
  • Access doors: 05
  • Bisagra y cerraduras de puerta: material de acero inoxidable.


Warranty

This generator has a warranty of:
02 YEARS or 2000 hours​​​​
